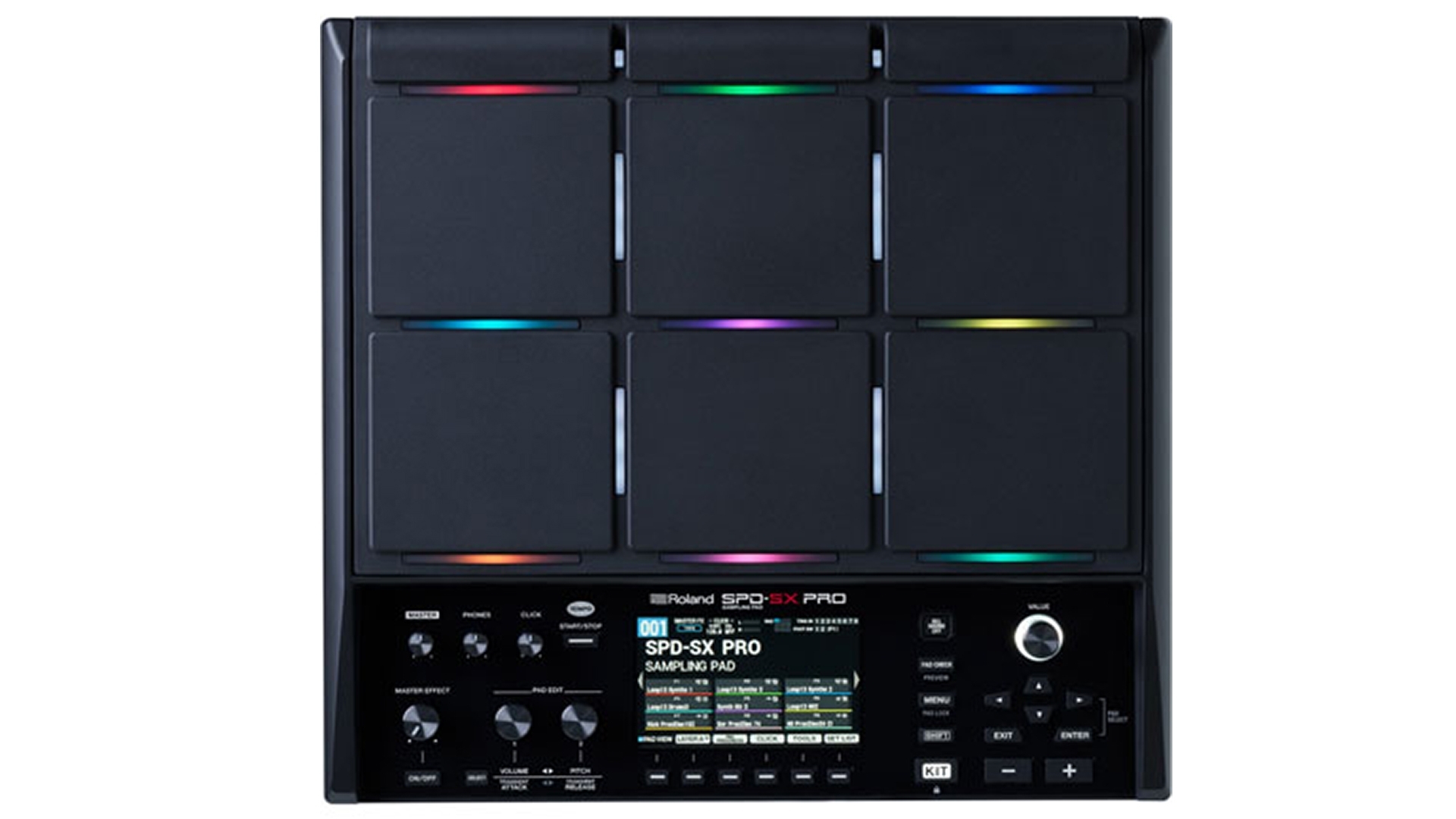

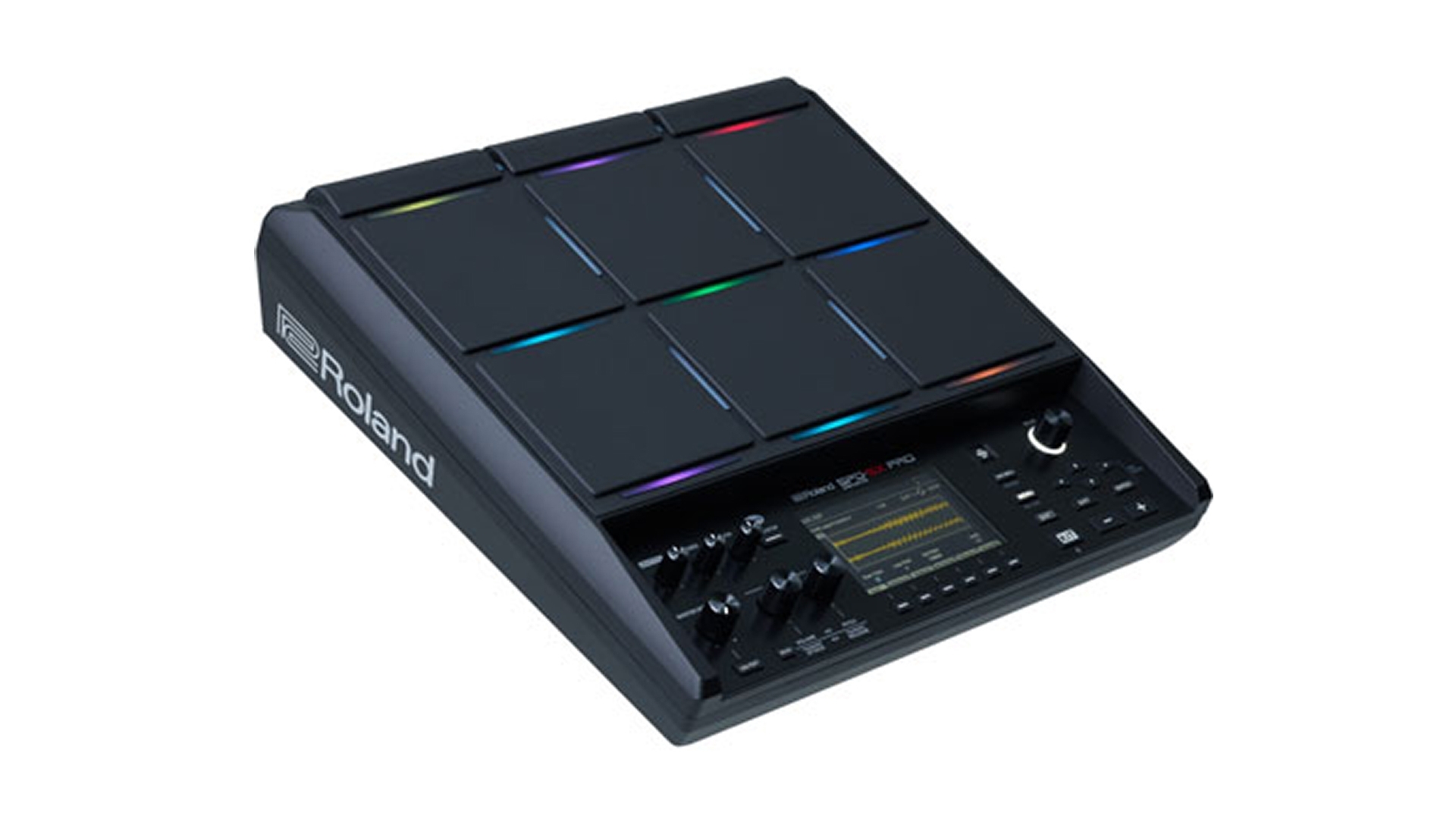

The Flagship Sampling Sidekick The SPD-SX PRO is the ultimate sampling pad for the most demanding gigs. With years of road testing and extensive user feedback from the SPD-S and SPD-SX, the top-tier SPD-SX PRO raises the bar again. Harnessing the advanced sample pad technology of its predecessors, the SPD-SX PRO boasts an array of requested professional enhancements and is built for life on the road. Illuminate dark stages with a large color display and customizable multi-color trigger lights. Expand your performance setup with more audio outputs, additional trigger inputs, and hi-hat and FX expression pedal control. And go further with a massive 32 GB memory, 48 kHz audio playback, increased pad sensitivity without crosstalk, and a dedicated SPD-SX PRO App for easier kit editing. Highlights Nine pads with Roland's advanced trigger technology, including six large pads and three top-row shoulder pads High-visibility, horizontal and vertical LEDs with multi-color customization Increased shoulder pad sensitivity and improved crosstalk performance 4.3-inch color display for easy navigation and viewing during performance Import 48/44.1 kHz (16-/24-/32-bit) WAV/AIFF files and MP3s (32-320 kbps) with automatic conversion to 48 kHz/16-bit upon loading Stereo main output, four direct mono outputs, balanced for easy mixing on stage Connectivity for up to eight external individual triggers/pads (four stereo triggers or eight mono triggers with Y-cables) Dedicated SPD-SX PRO App for Windows/Mac for easy importing, managing samples, and deep kit editing 32 GB of internal storage for samples, backing tracks, and click tracks Input for hi-hat or footswitch expression control Connect hi-hats, kick, and snare for a 'mini drum kit' setup Up to 200 kit patches (43 erasable preset kits and 157 user kits) Over 1550 pre-loaded, high-quality samples and sounds 16-step pad sequencer function Onboard effects engine with up to four effects in parallel, plus side chain with output routing Built-in click/metronome Create in real time by recording performances as WAV files and assigning them to pads Introducing the Roland SPD-SX PRO Flagship Sampling Pad Meet the flagship pad in the sampling pad lineup: SPD-SX PRO. Harnessing Roland's advanced sampling technology, the SPD-SX PRO boasts an array of requested, enhanced professional features. And each component has been tested to withstand the pressures of life on the road.
Pads
Built-in pads: 9 (with PAD LED, Vertical LED)
* Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.
Maximum Polyphony
32 voices (included click voices)
Number of Recordable Wave Data
20,000
*Including preload data
Internal storage
Size: 32 GB
*Including preload data
Sampling Time
Sampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sample
Data Format
16-bit linear
Sampling Frequency
48 kHz
Import Format
WAV, AIFF, MP3
Kits
200
Preload wave
Factory preloaded samples: 1,550 or more
Setlist
32 (32 steps per SET LIST)
Kit Effects
Layer Equalizer : each pad (Layer A/B independently)
Layer Transient : each pad (Layer A/B independently)
Multi-Effects (53 types) : 4 systems
Side Chain Compressor : 1 system
System Effects
Master Effects (53 types)
Master Compressor
Master Equalizer
Number of USB Audio Record/Playback Channels
Sampling Rate (Original): 48 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
Record: 8 channels
Playback: 12 channels
Display
Graphic color LCD 4.3 inch

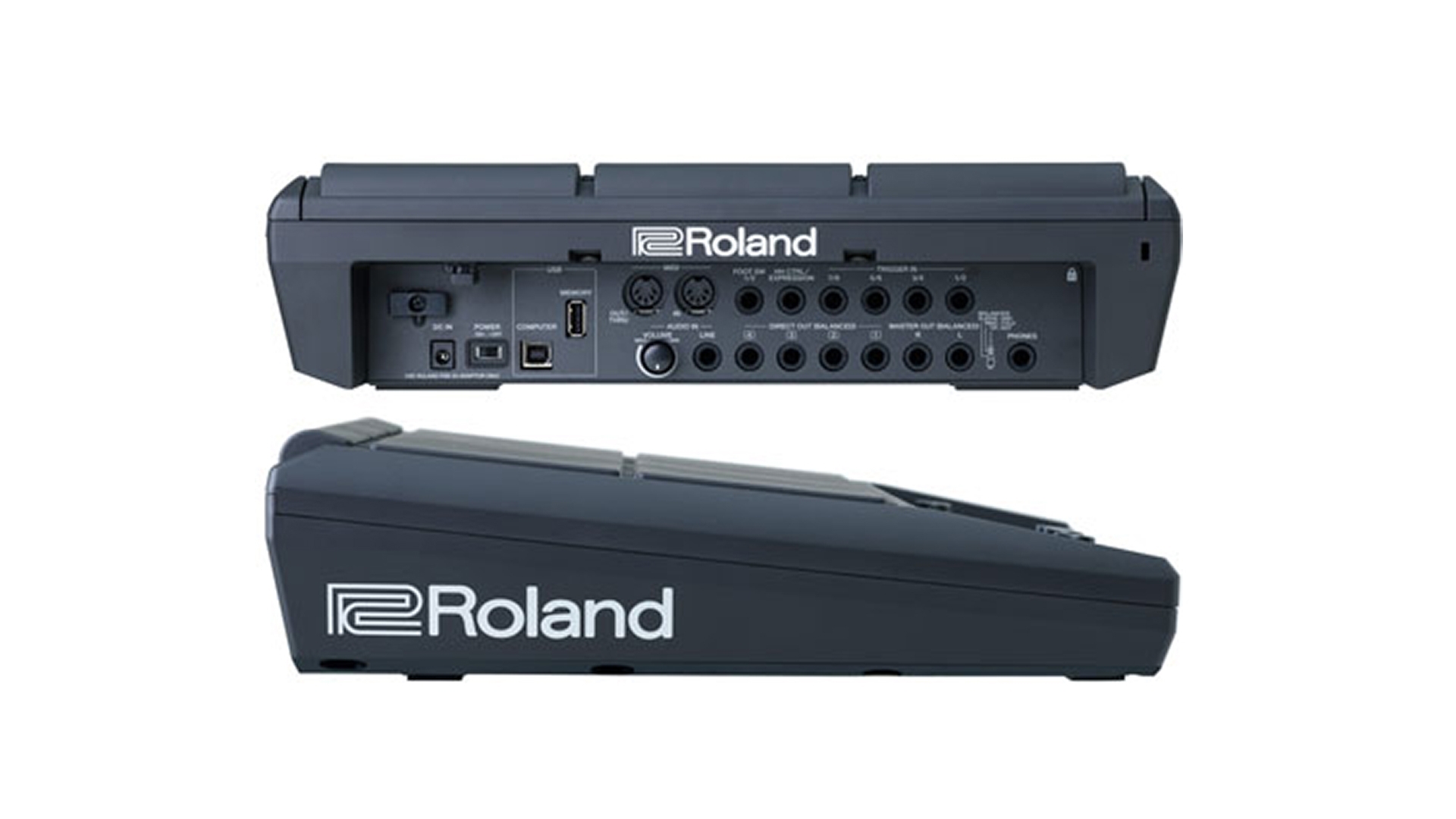

Connectors
PHONES jack : Stereo 1/4-inch phone type
MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App)
USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
DC IN jack
Power Supply
DC 12V (AC Adaptor)
Current Draw
1,500 mA
Accessories
Quick Start
Leaflet "Read Me First”
Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES”
AC Adaptor
Options (sold separately)
Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Hi-Hat (VH-10, VH-11)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-20, PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
Expression Pedal(BOSS EV-30)
Pedal Switch(DP-2)
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L)
USB Flash Memory
SIZE AND WEIGHT
Width
360 mm
Depth
330.3 mm
Height
92.9 mm
Weight
3.0 kg
(excluding AC Adaptor)
