Juzisound Total SOLO Sampler 3 Synth Version

Proizvođač: Juzisound
Stanje: Na stanju

RSD 188.000,00

Next generation of sampler device, again specialized for playing ethno music. If you play that kind of music, this device is really the right one for you!
Model 3 is successor of Sampler 2, but the technology is much more advanced. Sampler 3 have 8 independent Uppers (synth version), read samples from Micro SD card with maximum possible speed, have SD card auto refresh function, and have best in the world 32 bit DAC for perfect audio quality. The same hardware is used with 2 independent software versions: One for use with any Synth, and second for use with MIDI accordions.
For more information, see specification and comparison table between all samplers.

CPU:

2 x ARM CPU STM32H743VIT6
Frequency 400 MHz

Digital Audio Processing:

32 bit / float

Sample Rate:

48 kHz

Wave memory:

Unlimited – depending on the size of SD card used

SD Card slot:

Micro SD Cards 2.7–3.6V Push/Pull

SD Card Auto Refresh Function

Yes, Sampler automatically dettect slow SD sectors, and refresh it when no play.

Supported SD cards:

Micro SD with size to 512GB

Audio file format:

WAV / 48000Hz / 16 bit / Mono or Stereo

Sampling method:

Full Length – entire length of the sample Fractal Loop Mode Single WAV file for each note

Multisamples:

10 000 multisamples in a bank 20 multisamples for every program

Multisample files:

114 WAV files, single file for each note

Uppers

8 Uppers

Maximum polyphony:

Total 24 voices*
*24 mono or 24 stereo (equal to 48 mono) voices available from SD card.

Oscillator mode:

Normal POLY, Bass MODE, Mono RETRIG, Mono LEGATO, Mono+PRT CZ, Mono+PRT DX, Ac Bouzouki, BG Gadulka GRP, Ethno Bouzouki, Mono+PRT KORG, Mono+PRT JS1, Mono+PRT JS2, StradivariV, Kempa GROUP, Strad Vio 2, JS TenorSax, JS Alt Sax, JS Clarinet, JS Bouzouki, JS Turkish Oud, JS Ethno Violin, Chord Memory, KORG Poly Portamento, JS Lyric Violine, JS Lyric Cello, Quad Poly Portamento, JS Poly/Mono Gtr, JS Quanun Mode, Poly&Mono/JS2.

Sounds:

10 000 sounds positions for one sound bank

Presets / Combinations:

10 000 preset/combinations for one sound bank

Scale / comma:

Resolution +/- 99 units per semitone One USER scale for each preset, plus 8 separate programmable global scales with option for instant recall at any time. There is ability to control the scales via MIDI directly from a synthesizer (with Sysex messages).

Terca:

13 presets for terca plus modes for scanning tercas. Ability for terca with a timbre, that differs from the basic timbre. There is a possibility to control the tercas via MIDI directly from a synthesizer (with Control Chnage).

Audio Busses:

Total 12 stereo audio busses:
8 Upper Busses + 3 Mix Busses + Master L/R Bus

Master Effects:

2 Master effects blocks in parallel configuration (Delay + Reverb).

Insert Effects:

5 Insert effects block, freely assignable to any Upper, Mix Buss or Master L/R Buss.

EQ:

4 Band Full Parametric EQ for every Upper.

DAC:

Texas Instruments PCM1795 !!! Sampling frequency 48 kHz Audio data real 32 bit !!!

Operational amplifiers:

NE5534 + NE5532

Master volume:

Analog Master Volume with ALPS high quality potentiometer

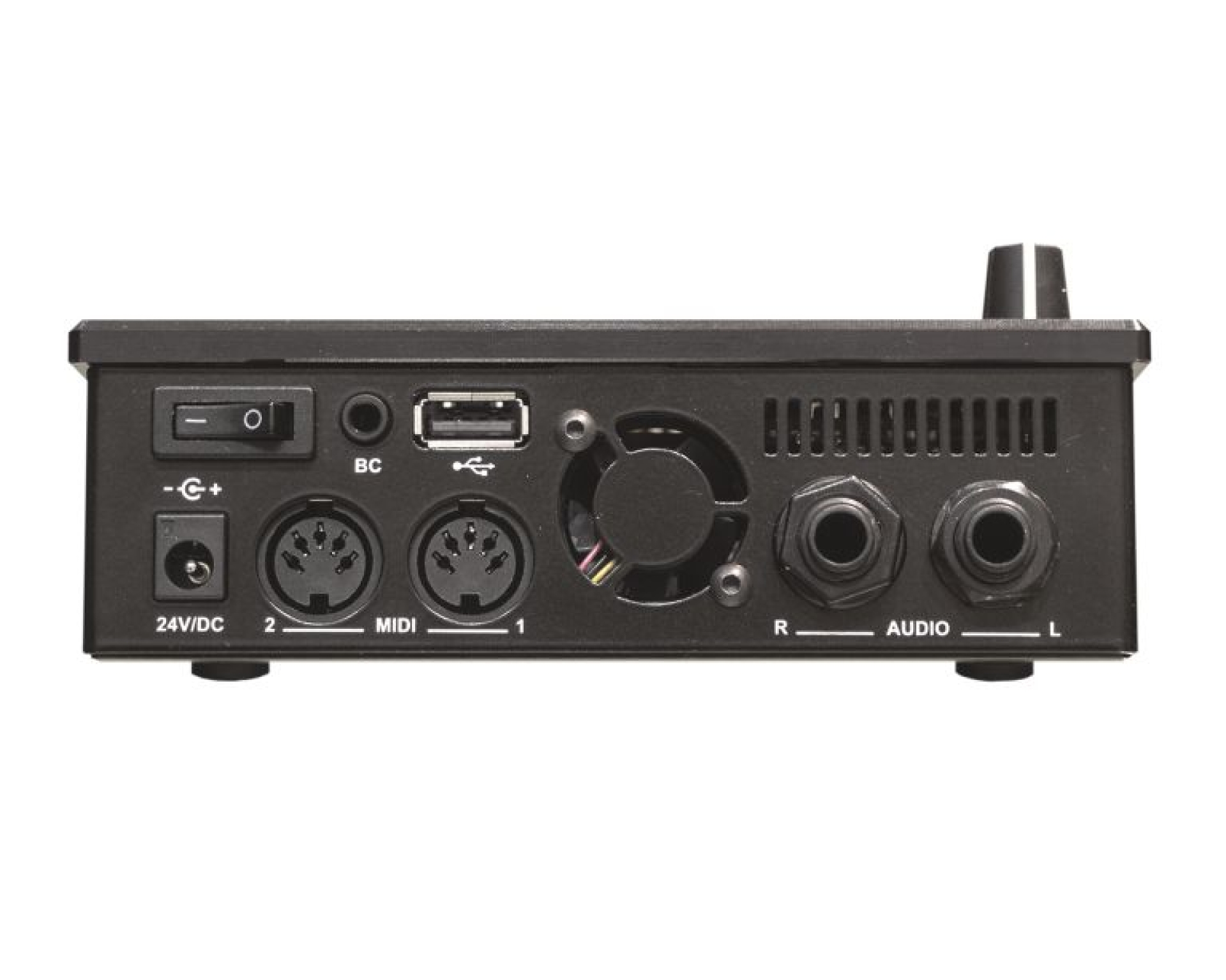

Audio outs:

2 separate mono 1/4 TRS connectors,
mono, unbalanced, on rear panel
Impedance 140 Ω
Signal-to-noise ratio 120 dB
Stereo crosstalk < -80 dBu/1 kHz
Maximum output level +18 dBu

MIDI interface:

2 x Standard 5-pin DIN connectors
One is always MIDI IN, ungrounded through opto-isolator Seccond is freely configured as MIDI In2, MIDI OUT or MIDI THRU

USB interface:

1 x USB HOST connectors
Accept Mass Storage Device or MIDI Host devices

Remap of note velocity:

Yes, using 16 different velocity curves, plus the limitation and mixing of 2 curves.

MIDI Analyzer:

Yes, shows the 16 most recent MIDI events + powerful MIDI Filter

Sysex Analyzer:

Yes, shows up 32 sysex messages with to 38 Sysex bytes every

Input for Analog Controller:

3.5mm stereo jack Software configuration of the power pins Power +5V Direct current (DC) Short circuit protection Input signal level from 0 to +5V Software controlled Pull Up resistor 2.2 kOhm Hardware analog amplifier with software-controlled GAIN and OFFSET

MIDI converter from Analog IN:

Ability to generate up to 3 different MIDI messages simultaneously, each with independent parameters. Send up to 3 different MIDI channels simultaneously. Messages are sent via MIDI OUT.

Ability to power external devices:

(Through the EXTENSION port)
+5V / 500 mA

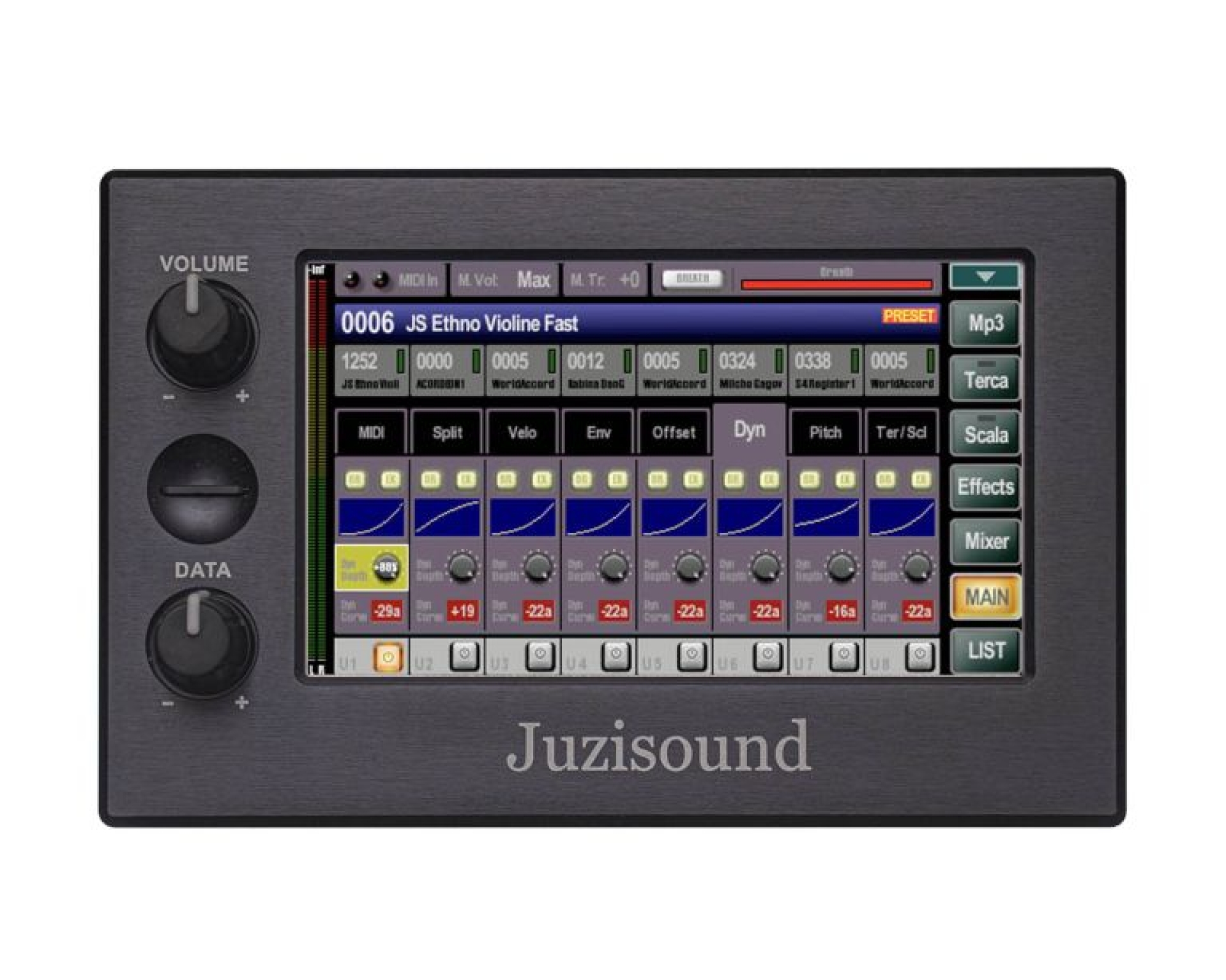

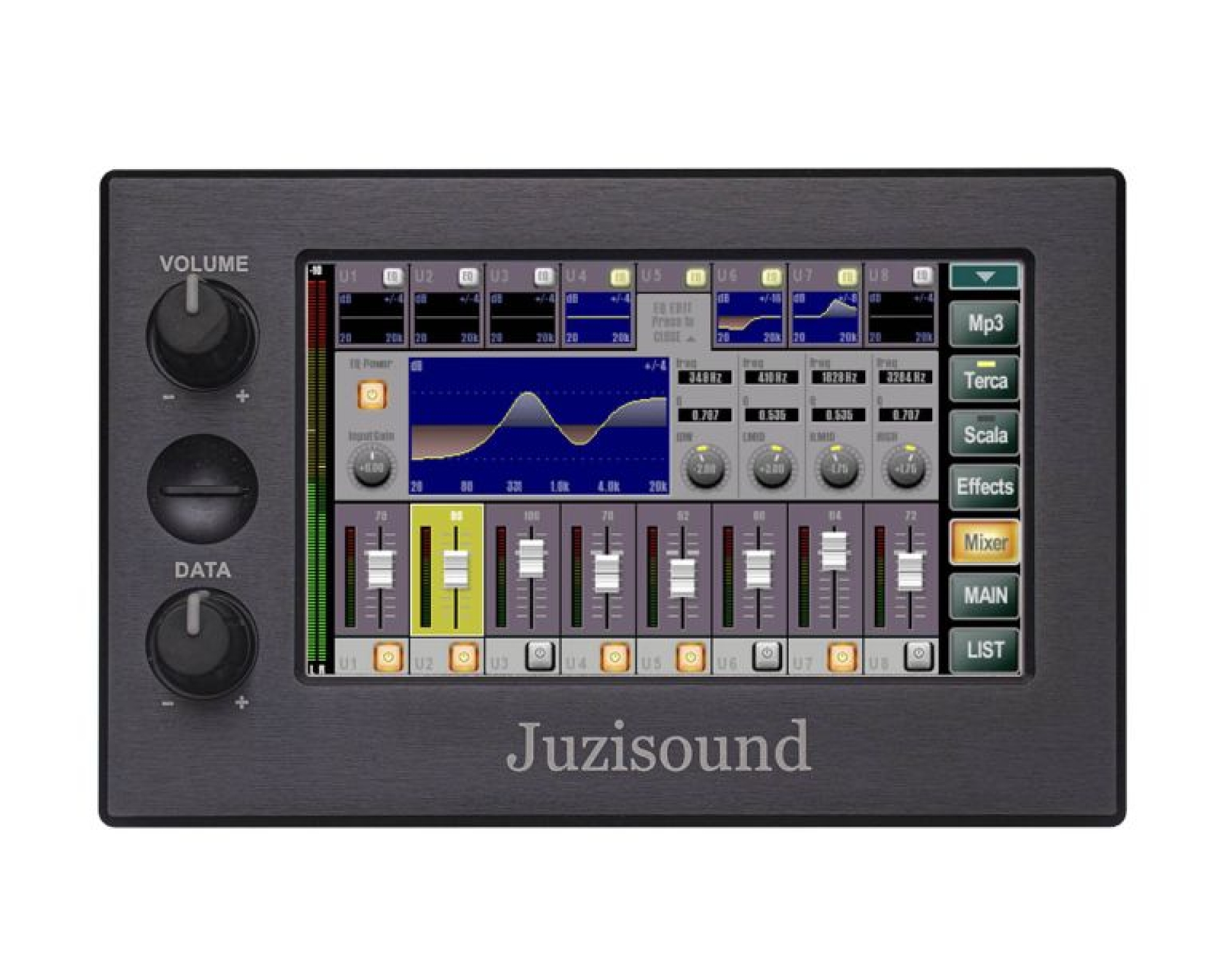

Display:

480 x 272 pixels IPS color display with LED backlight and capacetive Touch Screen

Package contents:

Sampler 3, 256GB SD Card, power adapter, MIDI cable, Warranty Card, Quick Start

Optional items (sold separately):

Breath Controller (Analog Version), second MIDI cable

Operating conditions:

Temperature from 0° to 40° C
Humidity < 90 %

Power Supply Adapter:

Input: AC 90V to 240 Volts / 50-60Hz
Output: 24V DC, 0.500A, Center +

Build-in fuse:

500mA

Power consumption:

<12 W

Warranty:

Standard Juzisound LIFE TIME warranty!* More...

Dimensions:

140 x 195 x 45 mm

Weight:

0.440 kg
