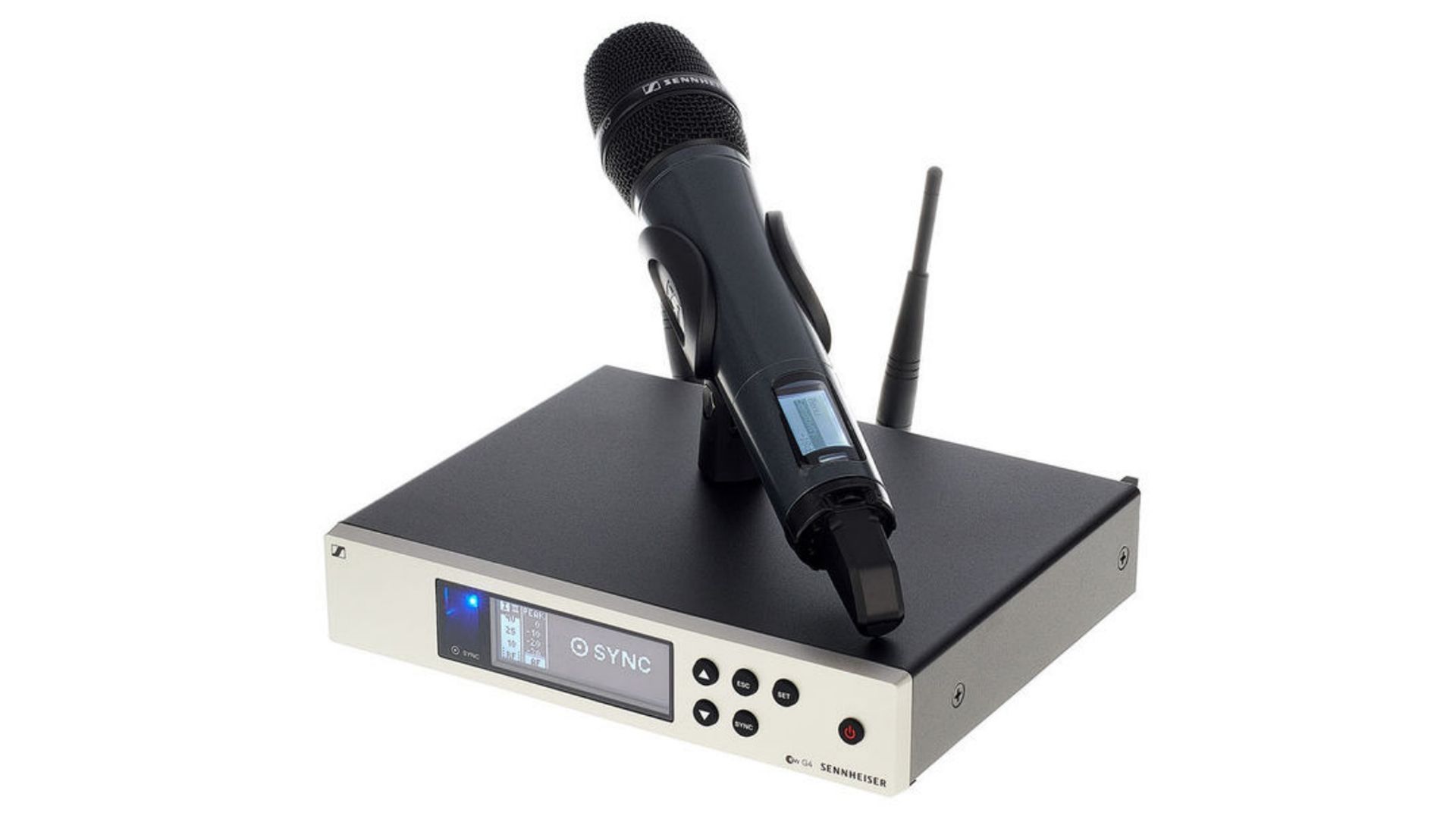

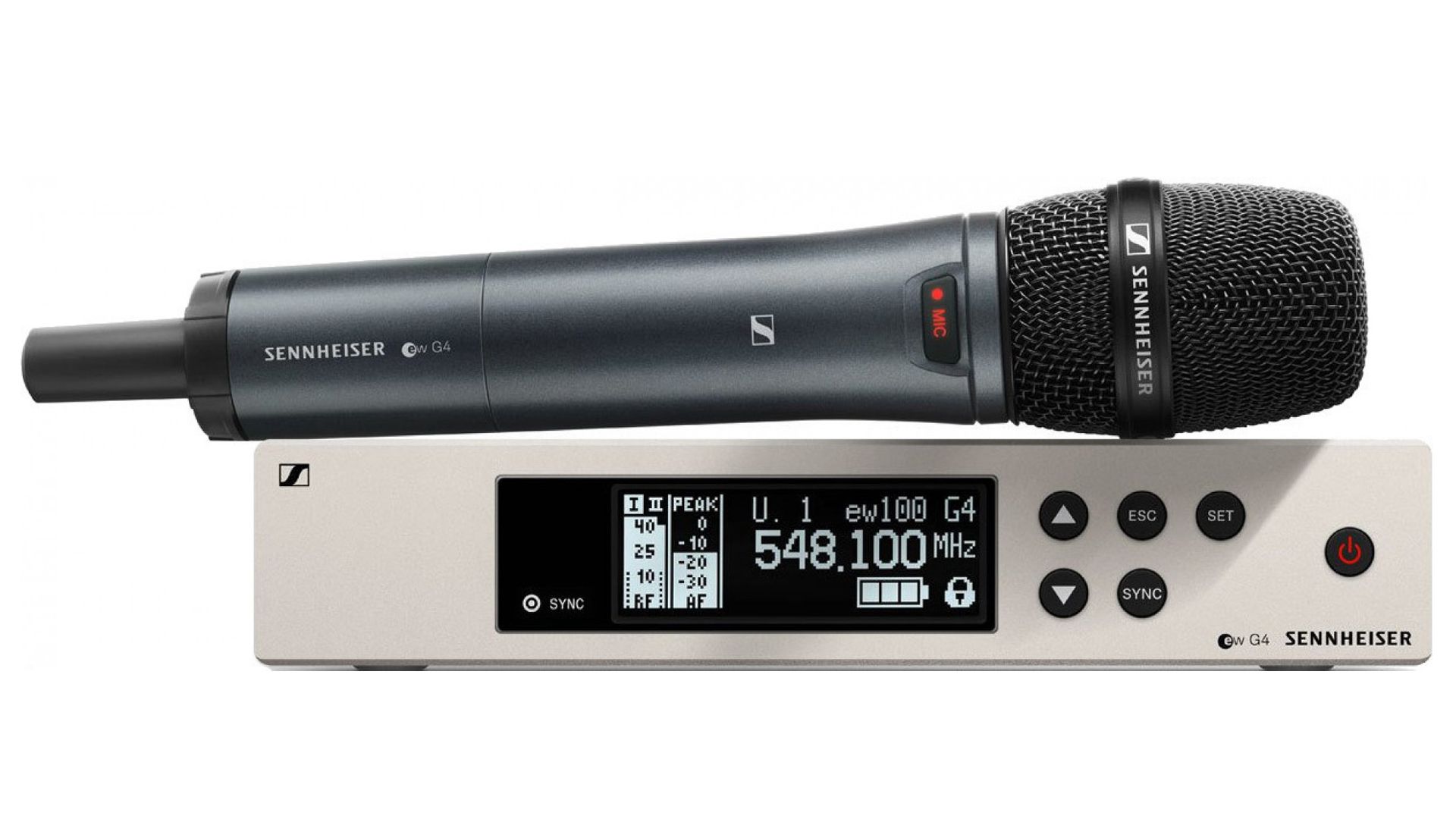

Sennheiser ew 100 G4 sa 945 glavom

Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission range: Up to 100 meters
High RF output power (up to 30 mW) depending on country regulations
Frequency Band A1: (470 to 516 MHz)
Type of Receiver EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Receiver Type True diversity
Sensitivity < 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity Typically ≥ 65 dB
Intermodulation Attenuation Typically ≥ 65 dB
Blocking ≥ 70 dB
Squelch Low: 5 dB µV
Middle: 15 dB µV
High: 25 dB μV
Pilot Tone Squelch: Can be switched off
Antenna Inputs 2 x BNC sockets
Compander Sennheiser HDX
EQ Presets Switchable, act on line and monitor outputs
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Signal to Noise Ratio ≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9%
AF Output (6.3 mm) jack socket unbalanced, +12 dBu
XLR socket balanced, +18 dBu
Output Range AF Out: 48 dB (3 dB steps)
Power Supply 12 VDC, 300 mA
Dimensions (W x L x H) 190 x 212 x 43 mm
Weight 980 g
