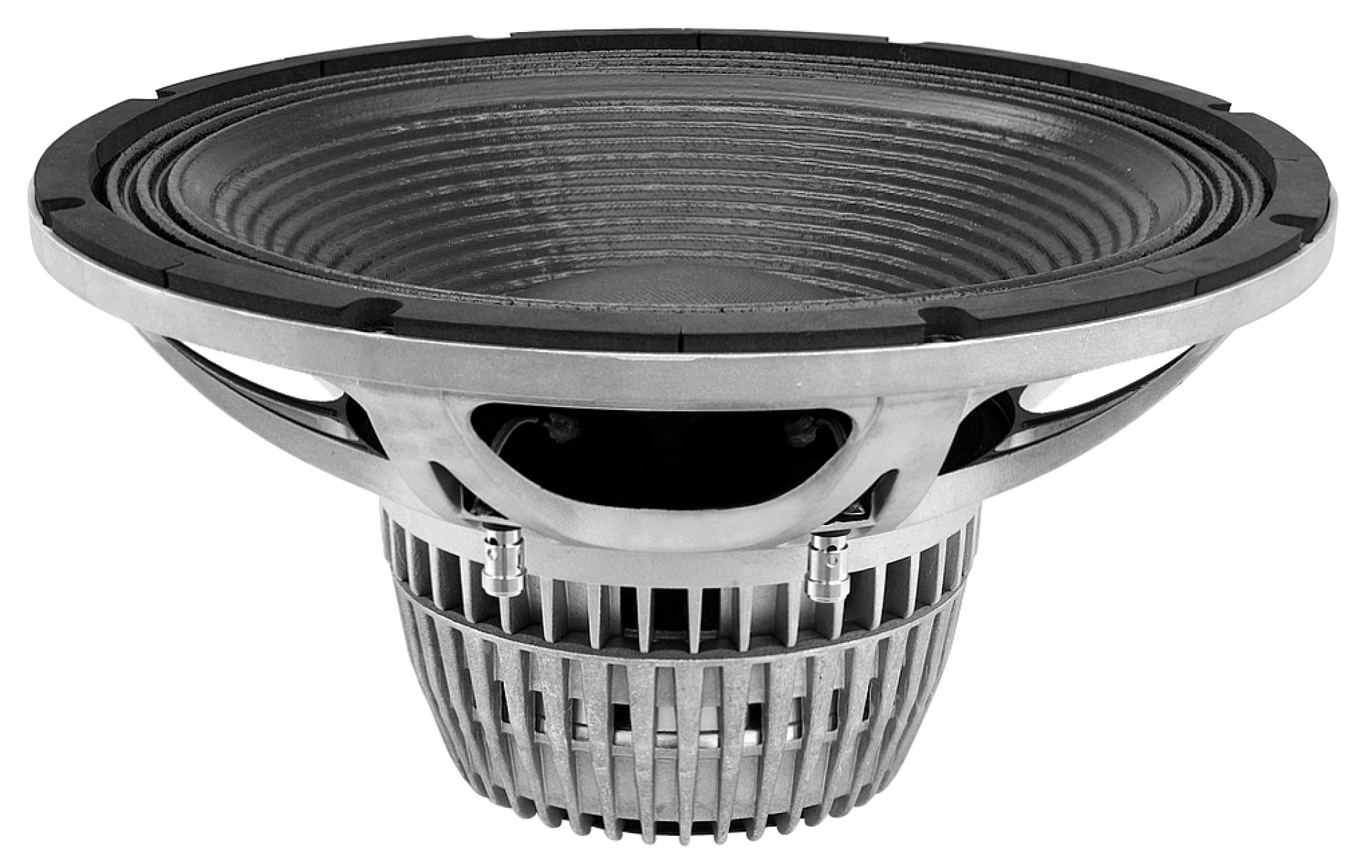

The 15NXB700 is neodymium bass loudspeaker designed to deliver high impact bass response, with exceptional high power capacity. It features 25 mm high sandwich voice coil, aluminium die cast frame with integrated triple aluminium demodulating rings and vented neodymium magnet structure. The massive heatsink improve the cooling of the magnet structure, which reduce power compression. This results in an incredible high efficient transducer for subwoofer applications, with the ability to handle high excursion with low distortion and reduced thermal power compression. It is suitable for tuned reflex or horn loaded enclosures for high level subwoofer applications.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 15.5 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 1000 W
Max power handling 2000 W

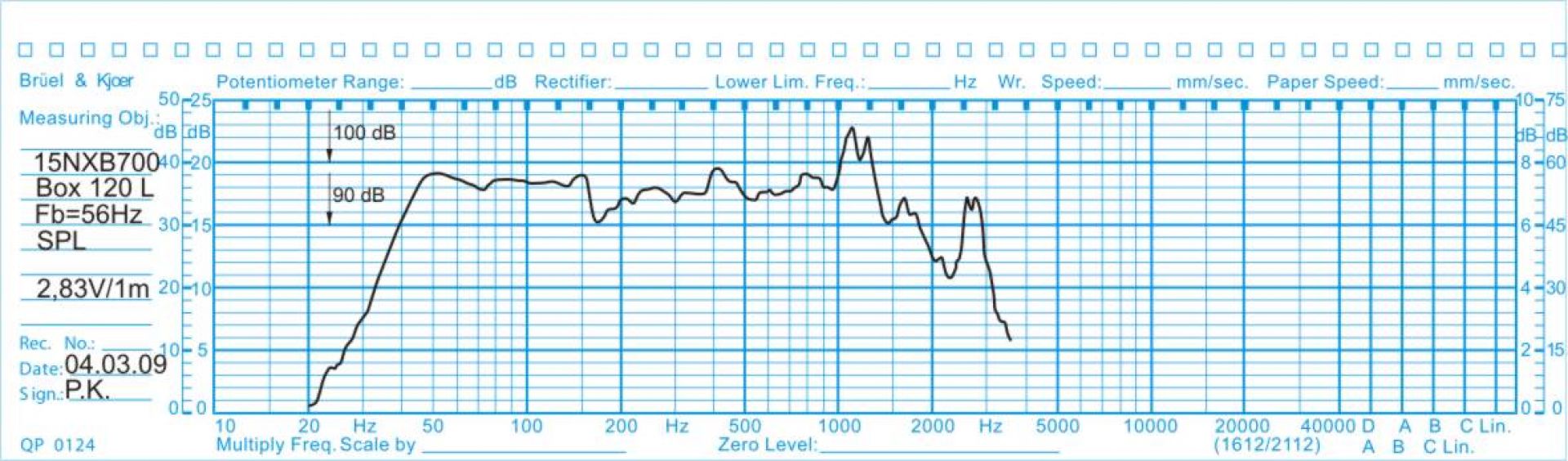

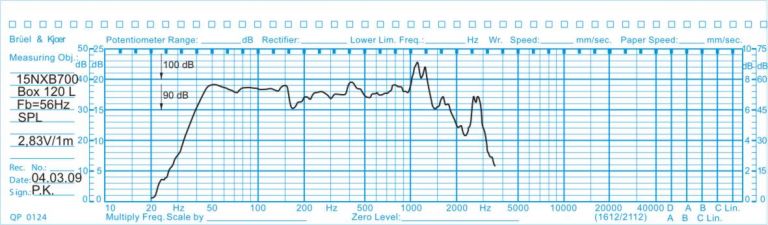

Frequency response 38-1000 Hz
Voice coil diameter 4 inch

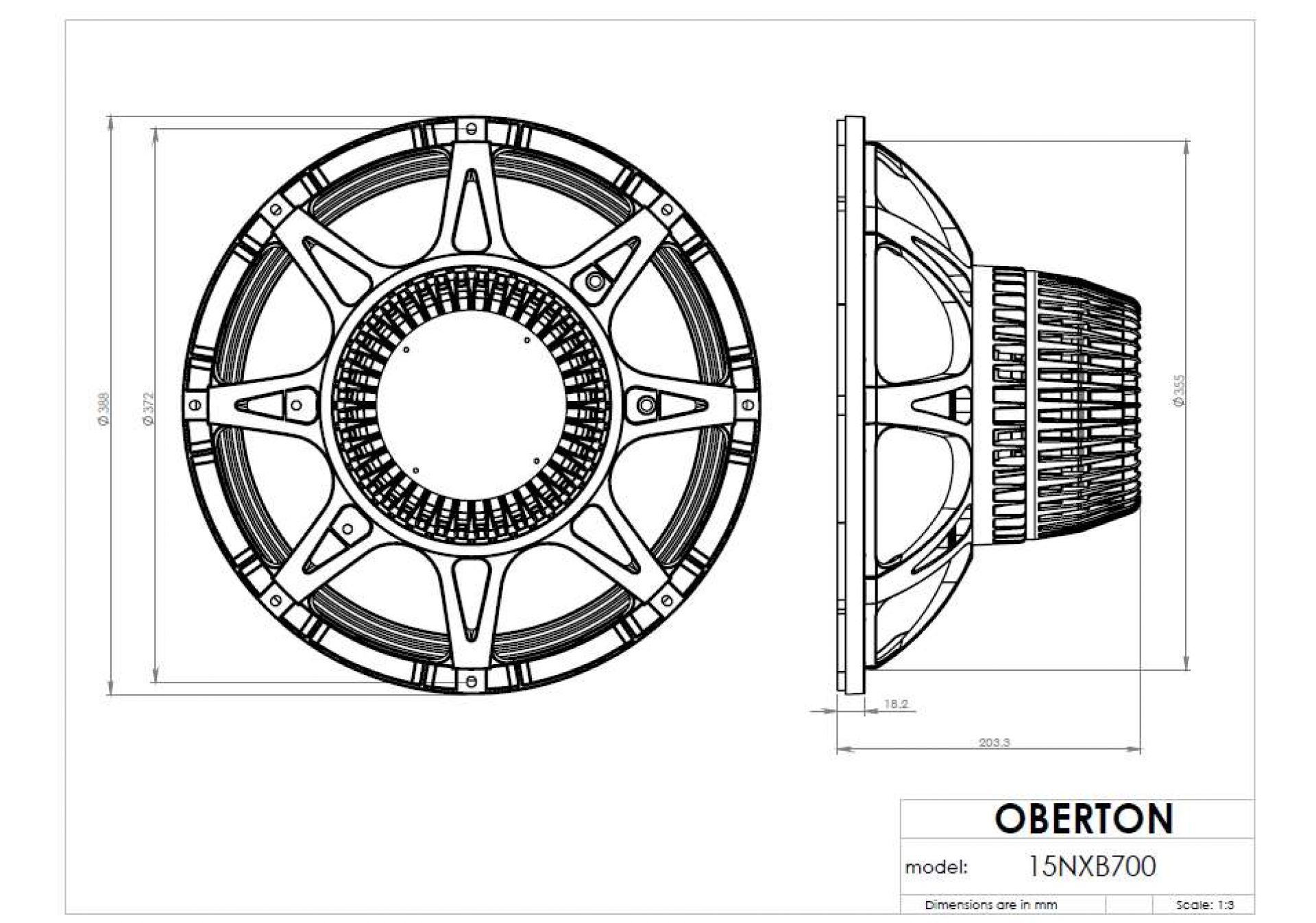

External diametre 388 mm
Mounting diametre 354 mm
Depth after front 179.3 mm
Front thickness 15.7 mm
Diamètre aimant (mm) 180 mm
Weight 8.1 kg
Fs 38.34 Hz
Re 5.23 ohm
Qes 0.293
Qms 8.75
Qts 0.283
Vas 105.5 L
Xmax 9 mm
Mms 156.84 gr
Le 1.98 mH
EBP 131
Shipping weight 8.1 kg
