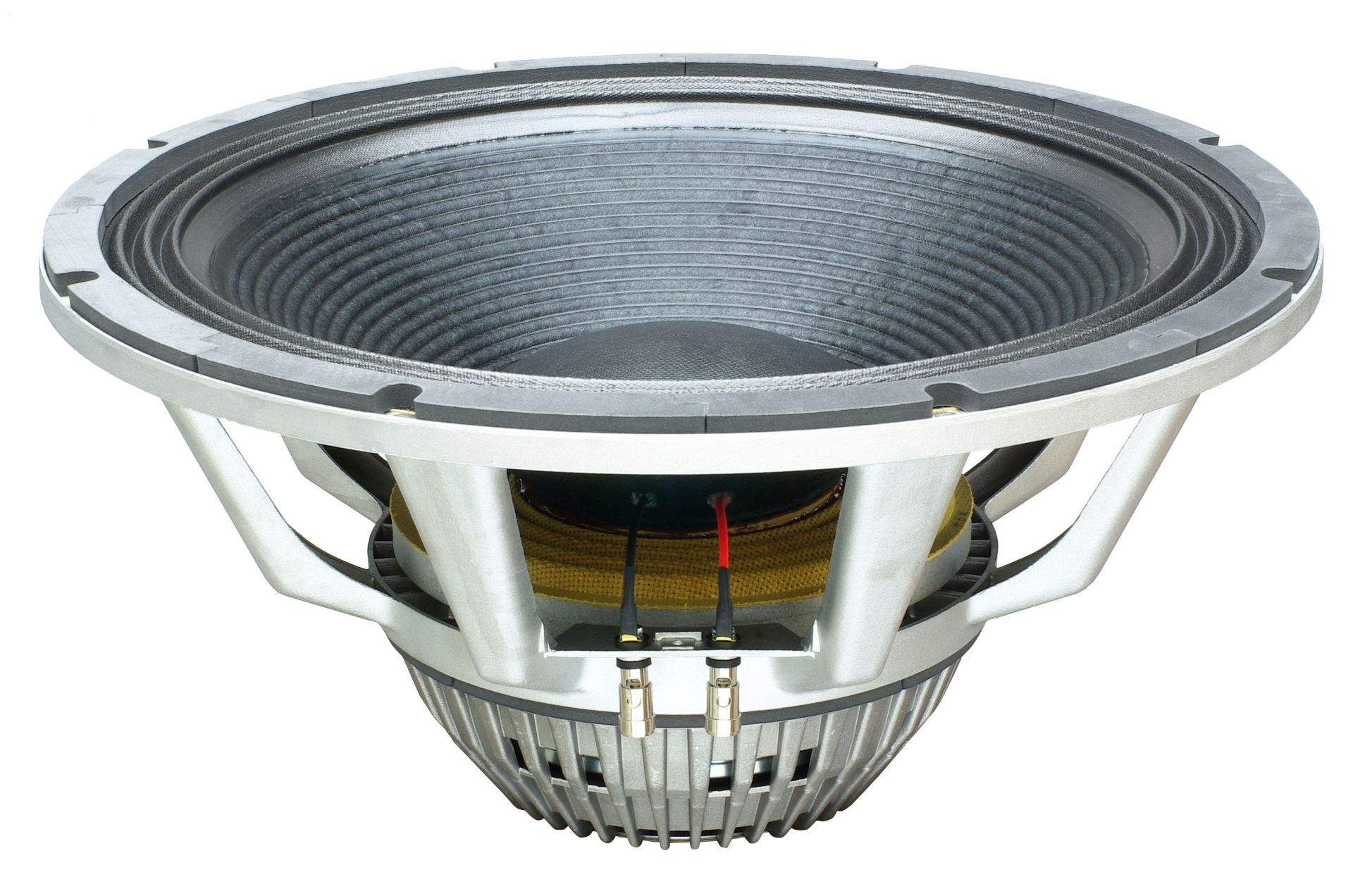

The 18NXB1600 neodymium bass loudspeaker is specially designed to deliver very high impact bass response, with exceptional high power capacity. It incorporates an 4.5" sandwich voice coil, double silicone spider assembly, kevlar paper cone and die cast vented aluminium frame. Powerful, vented neodymium magnetic structure with massive heatsink and double demodulating rings reduced power compression. The result is high efficient transducer for subwoofer applications, with the ability to handle very high excursion with low distortion and reduced thermal power compression.
Shape Cylindrical
Product type Cone driver
Brand Oberton
Dimensional category 18 inch
Front chape Cylindrical
Magnet type Neodymium
Nominal impedance 8 ohm
Nominal power handling 1600 W
Max power handling 3200 W
Sensitivity 97 dB

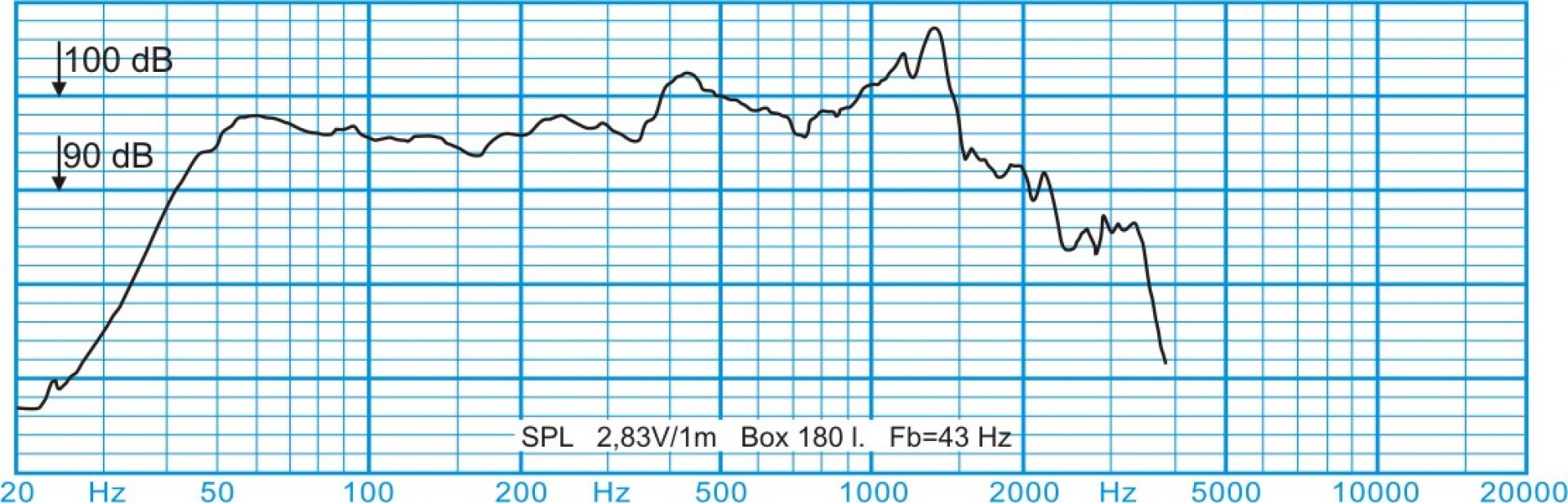

Frequency response 30-1000 Hz
Voice coil diameter 4.5 inch

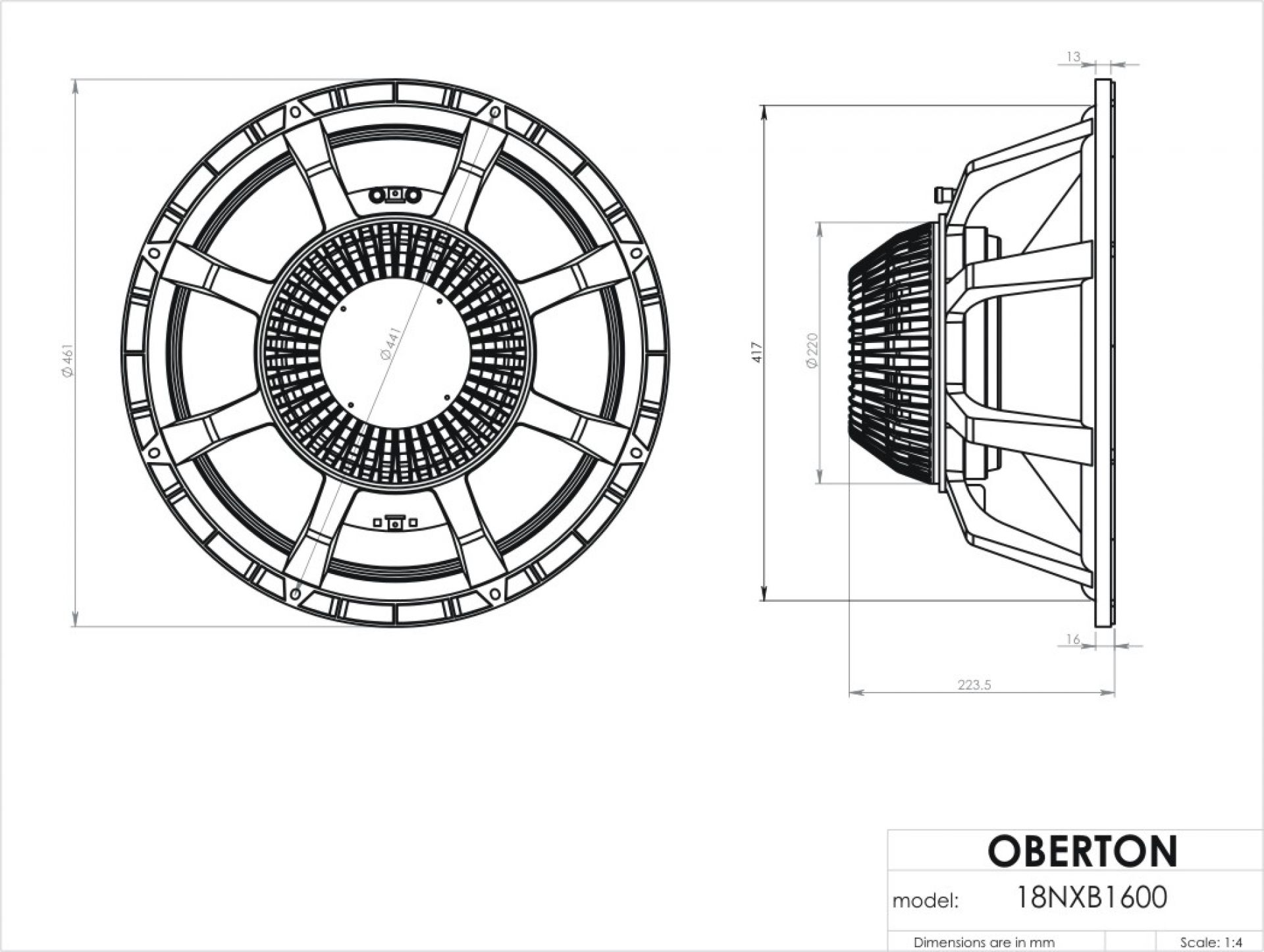

External diametre 461 mm
Mounting diametre 417 mm
Depth after front 207.5 mm
Front thickness 16 mm
Diamètre aimant (mm) 220 mm
Weight 11.7 kg
Fs 32.37 Hz
Re 5.3 ohm
Qes 0.332
Qms 5.11
Qts 0.303
Vas 173.11 L
Xmax 13.5 mm
Mms 261.56 gr
Le 1.2 mH
EBP 98
Shipping weight 11.7 kg
